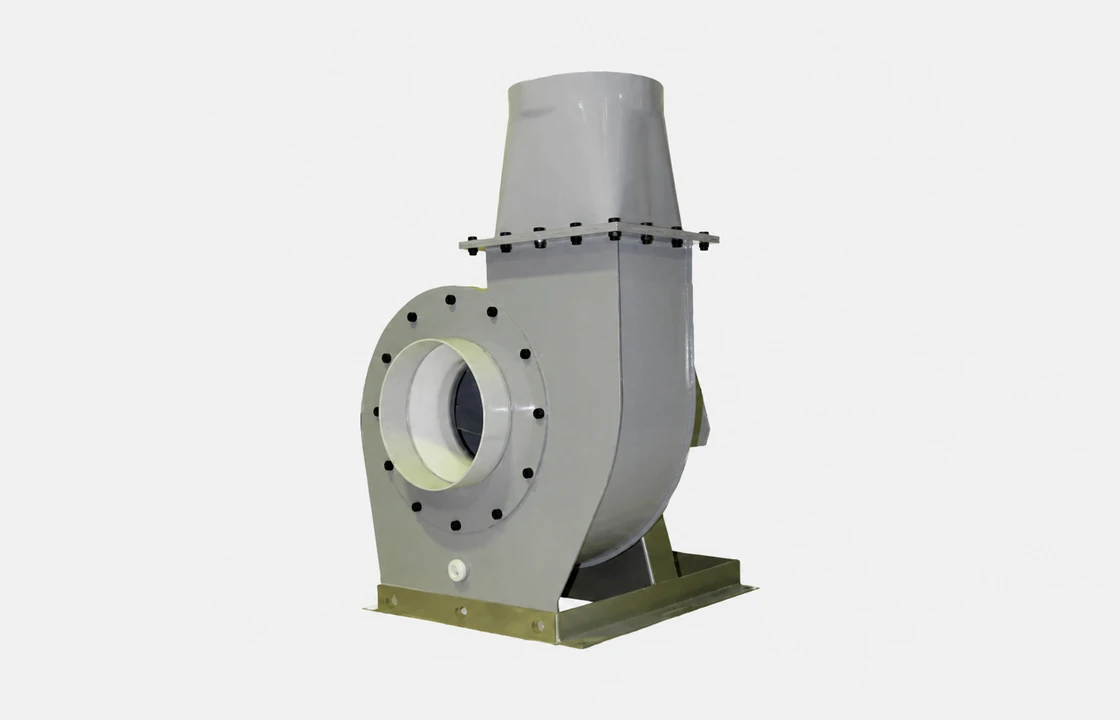

Product specification
| Item | Product information |
|---|---|
| Housing | CNC-cut uPVC panels, fully welded |
| Chassis | Stainless steel, supporting the fan and typical stack |
| Impeller | Dynamically balanced, backward-curved polypropylene |
| Motor | Three-phase motor in an alloy frame |
| Common supply arrangement | 230 V single-phase supply via an inverter |
| Control options | Inverter speed adjustment; compatible SashDrive control signal |
Installation considerations
Fixings are stainless steel or chemical- and UV-resistant plastic. The support and bracing requirements depend on the installation. Confirm the motor, inverter and required airflow before specifying a replacement.
Downloads
These original technical drawings retain their Calibre identification. Ask FumeCare to confirm the current specification for your project.
