In New Zealand a lab fume cupboard is a specified system called SS 11, a building safety system that must be checked on a set schedule. Adding one is usually building work that needs a building consent. It then goes on the building's compliance schedule, the council's list of the building's safety systems and how each one is checked. Every year an independent qualified person (IQP), an inspector registered with councils for that kind of system, must inspect it and sign a Form 12A.
FumeCare makes Calibre fume cupboards, Fumeflow fans and PVC duct in New Zealand, and supplies and installs whole systems from our base in Henderson, Auckland. Our team has more than 20 years' installation experience, and we are IQP registered for SS 11. New installations start with a free consultation and site assessment: call 0800 023 778.
This page is for lab managers, school heads of science, facilities managers and project managers who are planning a new ducted fume cupboard or replacing an old one, and need to know what the job involves, who does each part and what the building owner needs for SS 11 afterwards.

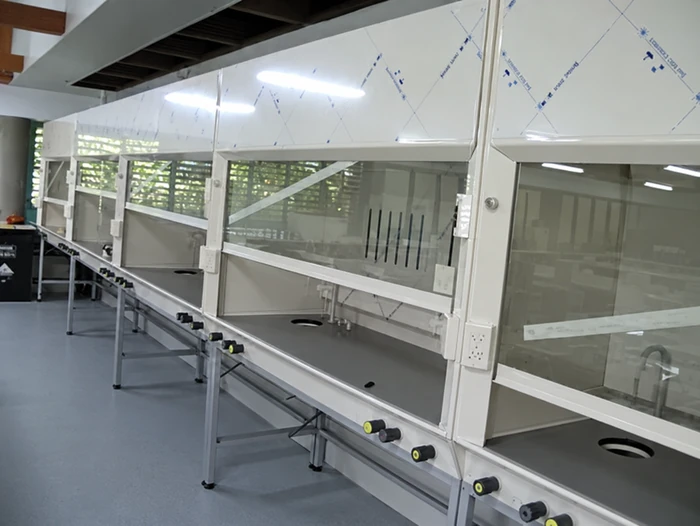

How a fume cupboard is installed, step by step
Steps 1 to 4 come before installation day. Steps 5 to 8 follow FumeCare's Calibre Smoothflow and SashDrive installation instructions. The Student is similar, but its in-line TD250 fan sits on top of the duct above the roof.
1. Site assessment
Check the delivery route through doors, corridors, lifts and stairs (see our fume cupboard dimensions guide), and that the bench or base is level, strong and the right height. Plan the duct path to the roof, including any floors or other tenants' spaces it crosses, a fan position (usually on the roof) with room to service it, and the power, water, gas and drains needed. Choose a position clear of side draughts (see common problems below).
2. Choose the cupboard and fan
Pick a cupboard that suits the work and the room. Then size the fan for the real duct route, not just the cupboard: the airflow needed with the sash open, the duct diameter and length, the number and tightness of bends, and anything else in the airflow, such as a silencer or the cowl on the stack. The duct material must stand up to your chemicals.
3. Design, consent and make-up air
Settle the duct route, fan position and outlet, and how make-up air (fresh air to replace what the cupboard pulls out) will get into the room. Our guides to fume hood placement, extraction design, ductwork design and make-up air go deeper. Leave time for the building consent. The council must decide on an application within 20 working days (Building Act s 48), but the clock stops while it waits for any further information it asks for. If you rent, or there is a body corporate, get their OK before work on the roof or in shared areas.
4. Manufacture and site preparation
While FumeCare makes the Calibre cupboard, the site is got ready: holes through the roof and walls, supports for the duct and fan, a level base, and power and other services run to the cupboard's position.
Every installed system is made to order. From order to installation usually takes 4 to 6 weeks.
5. Set the cupboard
Set the under-bench frame in place, level and 870 mm high. Lift the cupboard on, line it up and screw it to the frame. Fit the sash (the sliding glass front), the baffles (panels at the back that guide the airflow) and other fittings, following the maker's instructions. Calibre installation drawings and instructions are on our website.
6. Install the duct, fan and stack
Cut a 260 mm hole through the ceiling and roof, straight above the cupboard, for the 250 mm PVC duct. On the roof, within about 1 m of the hole, build a level platform for the fan from timber, galvanised steel or stainless steel. The D250 fan weighs 28 kg and the stack and cowl about 17 kg, so plan for 45 kg. Fix the fan on rubber mounts to cut vibration.
Fit the discharge stack (the outlet pipe) and cowl to the fan outlet, standing straight up, so the cowl ends 3 m above the roof penetration, away from air intakes, opening windows and nearby buildings (see our fume hood exhaust stack guide). On the Student, guy wires clamped about 2 m above the roof hold the stack. Run the duct up through the roof, fit the ceiling flange, seal the roof flashing, and join the duct to the fan with a bend and a flexible connector. Make PVC joints with solvent cement or hot-air welding, and keep bends to a minimum. Silencers can be added where fan noise matters.

7. Connect power and services
A licensed electrician connects the cupboard controller and the fan, and gives you a Certificate of Compliance for the fixed wiring (the wiring built into the building). The Calibre drawings show a 230 V, 20 A supply to the controller and an isolating switch beside the fan (see our fume hood electrical requirements guide). Authorised plumbers, gasfitters and drainlayers connect any water, gas and drains; for a sink, see our fume hood sink guide.
8. Commission and test
With the room's normal ventilation running, raise the sash to the sash stop and measure the air speed at six points across the opening. FumeCare's Calibre instructions call for an average above 0.5 m/s. The Student instructions set the fan to give 0.52 to 0.55 m/s, and the Student and Smoothflow handbooks recommend 0.55 m/s. A SashDrive should also average above 0.75 m/s with the sash at its lowest stop, and its fan speed should change as the sash moves.
Do a smoke test to AS/NZS 2243.8 and check the sash, lights and controls. Then set the airflow alarm and test it. On the Student and Smoothflow, pulling the sensor tube out of the duct should set it off within 2 to 3 seconds; on the SashDrive, covering the airflow sensor should light its warning within 5 to 10 seconds. Record it all in a commissioning report, the baseline for every later test.
9. Hand over and train users
The owner gets the user handbook, the commissioning report, the electrical certificate and the details for the compliance schedule. Train users in the habits from the Calibre user handbooks:
- Start the cupboard and check the alarms, especially airflow, before you begin. Close windows or doors that cause draughts.
- Keep the sash at or below the sash stop, which limits the opening to about 480 mm. Release it only for cleaning or setting up, never to work.
- Set apparatus near the centre and back, clear out clutter, and don't store chemicals in the cupboard.
- If the airflow alarm sounds, stop, and get the cause fixed before using the cupboard again.
- After switch-off, the fan and light run on to clear the cupboard: about 20 minutes on the Smoothflow and 5 on the Student.
10. Every year after
Each year the cupboard needs an SS 11 inspection and Form 12A from an IQP, and at least one service. FumeCare does both; see our service and SS 11 testing pages.
What a standard FumeCare installation includes
We quote every installation for its own site. A standard FumeCare installation includes:
- a pre-start site visit and measure-up
- delivery of the system
- siting the fume cupboard
- siting the duct penetration
- the roof penetration
- a colour steel back flashing tray
- the extraction duct
- Dektite rubber flashing
- the TD250 or D250 fan
- an aluminium MonkeyToe fan frame (D250 fan only)
- the exhaust flue, with bird proofing on the fan
- an aluminium guy system (TD250 fan only)
- commissioning, and IQP certification of the fume cupboard
- the product warranty, and a Producer Statement (PS3) for the duct install and roof penetration

We install from Auckland to Northland. Tell us about your site and we'll quote the whole job, from the measure-up to the IQP certificate.
Calibre fume cupboards and matching fans
| Cupboard | Design | Matching fan | Documents |
|---|---|---|---|
| Calibre Student | Good-value bypass design (an extra air opening keeps the airflow steady as the sash moves), shallow enough for standard school benches and cabinets | Fumeflow TD250 in-line centrifugal fan, direct drive (no belt) | Installation drawing, instructions, user handbook |
| Calibre Smoothflow | Fully specified design with a bypass grille above the sash opening to control the airflow | Fumeflow D250 | Installation instructions, user handbook |
| Calibre SashDrive | The sash position sets the exhaust fan speed, saving up to 80% of heating energy | Fumeflow D250 | Installation drawing, instructions, user handbook |
D250 and TD250 fan drawings and performance data are on our website too. We make corrosion-resistant PVC duct in standard diameters from 150 mm to 400 mm, and PVC silencers for round and rectangular duct. Our guide to choosing a fume cupboard compares the models.
The SashDrive is the more complex system, and it is better suited to commercial labs and universities.
Common installation problems and how to avoid them
- Side draughts. A cupboard near a door, walkway, supply vent or a facing cupboard can leak fumes even when the face velocity is fine. Settle the position on paper first.
- A fan too small for the real duct route. Every extra metre of duct, bend and silencer adds resistance, so a fan picked for the cupboard alone can leave the face velocity too low. Size the fan from the final route.
- No make-up air. Doors get hard to open and the cupboard can't reach its design airflow.
- Fumes getting back inside. A stack that ends too low, or near air intakes or opening windows, can let exhaust back in. The Calibre instructions end the stack 3 m above the roof penetration.
- Leaks from duct under pressure. Duct after the fan is under pressure, so a leaky joint there lets fumes out. With the fan near the outlet, as in the Calibre layouts, the duct inside the building is under suction and a leak draws air in. Seal every joint.
- Reusing old duct or an old fan without checking. Old duct may be the wrong size, worn out or the wrong material, and an old fan may not suit the new cupboard.
- Applying for consent late. The consent often sets the timeline, and for schools can push the install into term time.
Fume cupboard installation in NZ: who does what
On a New Zealand installation the work is usually split like this:
- Supplier and installer: the cupboard, fan and PVC ducting, installed and commissioned. FumeCare makes and installs all three.
- Licensed electrician: the fixed wiring, with a Certificate of Compliance (Electricity (Safety) Regulations 2010).
- Authorised plumber, gasfitter or drainlayer: any water, gas or drains (Plumbers, Gasfitters, and Drainlayers Act 2006).
- Council: the building consent under the Building Act 2004, then the code compliance certificate and updated compliance schedule.
- IQP: the annual SS 11 inspection and Form 12A. FumeCare is IQP registered for SS 11.
- Building owner: the annual building warrant of fitness (Form 12), backed by the IQP's Form 12A.
The cupboard standard is AS/NZS 2243.8:2014 Safety in laboratories, Part 8: Fume cupboards, covering performance, selection, installation, testing and use. Building Code clause G4 covers room ventilation. Under the Health and Safety at Work Act 2015 and the Health and Safety at Work (Hazardous Substances) Regulations 2017, the business running the lab must control exposure to hazardous substances, so the cupboard must be proven to work first.
How SS 11, the compliance schedule, Form 12A and the BWoF fit together
- Sign-off: with the code compliance certificate, the council issues or updates the compliance schedule, which lists the cupboard as SS 11 and sets out how it must be inspected, maintained and reported on.
- The first year: if this is the building's first compliance schedule, the council also issues a compliance schedule statement, displayed in the building until the first building warrant of fitness (BWoF) is due 12 months later.
- Every year: an IQP signs a Form 12A only if the schedule's inspection, maintenance and reporting steps were fully carried out over the past 12 months, so the yearly service and test records matter.
- The owner's part: the owner gives the council the BWoF (Form 12) with the Form 12As, displays it in a public place in the building, and keeps inspection and maintenance reports for at least two years.
Fume hood installation: the same job by another name
Fume hood is the North American name for a fume cupboard, and a ducted fume hood is installed in the same steps. Overseas guides often cite the US test method ANSI/ASHRAE 110 or the European standard EN 14175, and give clearances in feet. In New Zealand the cupboard is tested against AS/NZS 2243.8 and is an SS 11 specified system, so check overseas figures against NZ requirements and the maker's instructions.
Replacing an existing fume cupboard
Before the old cupboard comes out, remove all chemicals and decontaminate the cupboard and duct (clean off any harmful residue), with special care if perchloric acid or other dangerous residues might be there. Then isolate the power, gas and water. Keep the old duct only if it is the right size, in good condition and suits your chemicals, and the old fan only if it can move enough air for the new cupboard. Replacing most or all of a specified system usually needs a building consent too. Our decommissioning guide covers handing over the old unit.
Installing fume cupboards in schools
The Calibre Student, with its in-line TD250 fan, is designed for schools and sized for standard school benches and cabinets. Plan the roof and duct work for the school holidays and apply for consent early. Ask whether your school qualifies for free installation when you buy a Calibre fume cupboard system. Our school fume cupboard planning guide has more.
For secondary schools, the Calibre Student comes as a more streamlined package: the TD250 fan with a straight-run duct system. That means less work, so local plumbers or builders can install it using our instructions.
What drives the cost of an installation
The cupboard is only part of the price. The rest depends on the duct length and route, roof work and access (scaffolding or a crane), the connections, the consent and removing an old cupboard. Give every supplier the same job description and ask each to list what is and isn't included, such as wiring, roof flashing (the seal around the duct), builder's work and commissioning. Our fume cupboard cost guide covers budgets.
We don't publish installation prices, because every site is different. Every installation is quoted for its site, so ask us for a quote for yours.
Fume cupboard installation FAQs
Do I need building consent to install a fume cupboard?
Usually. Adding an SS 11 fume cupboard, or replacing most of one, is usually building work that needs a consent, as is cutting through the roof. Check with your council early.
Can a fume cupboard be installed without ducting?
Recirculating (ductless) fume cabinets clean the air through filters and send it back into the room. They only suit a small, known range of chemicals, and they rely on the filters being checked and replaced. FumeCare supplies and installs ducted systems, which send fumes outside the building.
How long does it take from order to installation?
Usually 4 to 6 weeks. We make every installed system to order, and each one is quoted for its site.
Plan your installation with FumeCare
Call 0800 023 778, Monday to Friday 8am to 5pm, or email info@fumecare.co.nz to book a free consultation and site assessment. It helps to send:
We install fume cupboards from Auckland to Northland.
- where you are, and whether it is a new room or a replacement
- photos of the space, including the ceiling and roof above it
- what the cupboard will be used for, with the safety data sheets for the main chemicals
- when you would like it done and who we should contact
Alex Tikaram is our foreman and site coordinator. Our clients include Watercare laboratories, LabPlus at Auckland DHB, the Ministry for Primary Industries, NZ Plant and Food Research, Eurofins and NZ Racing Labs.
About this guide
Written by FumeCare Ltd, a New Zealand owned and operated company based in Henderson, Auckland. FumeCare took over the licence and manufacturing of the whole Calibre fume cupboard range, and also makes Fumeflow exhaust fans and PVC ducting, so we handle every part of an installation ourselves: making, installing, servicing and testing.
Our team has more than 20 years' experience in thermoplastic fabrication, in making fume cupboards, exhaust fans and ductwork, and in installing them, including complex duct runs. We are IQP registered to test and certify SS 11 fume cupboards, so the same team can do the yearly inspection. Calibre cupboards have been installed in labs and schools across New Zealand and the Pacific Islands for over 30 years. We publish the installation drawings, instructions and user handbooks for each model, and the installation and commissioning figures on this page come from them. Alex Tikaram is our foreman and site coordinator, and Carlos Tikaram is our managing director.
Today our team installs, services and tests fume cupboards from Auckland to Northland.
Last reviewed: November 2026.
Main sources: FumeCare's Calibre installation instructions, drawings and user handbooks; AS/NZS 2243.8:2014; the Building Act 2004; the Building (Specified Systems, Change the Use, and Earthquake-prone Buildings) Regulations 2005; the Building (Forms) Regulations 2004; NZ Building Code clause G4; the Electricity (Safety) Regulations 2010; the Plumbers, Gasfitters, and Drainlayers Act 2006; the Health and Safety at Work Act 2015; and the Health and Safety at Work (Hazardous Substances) Regulations 2017.
