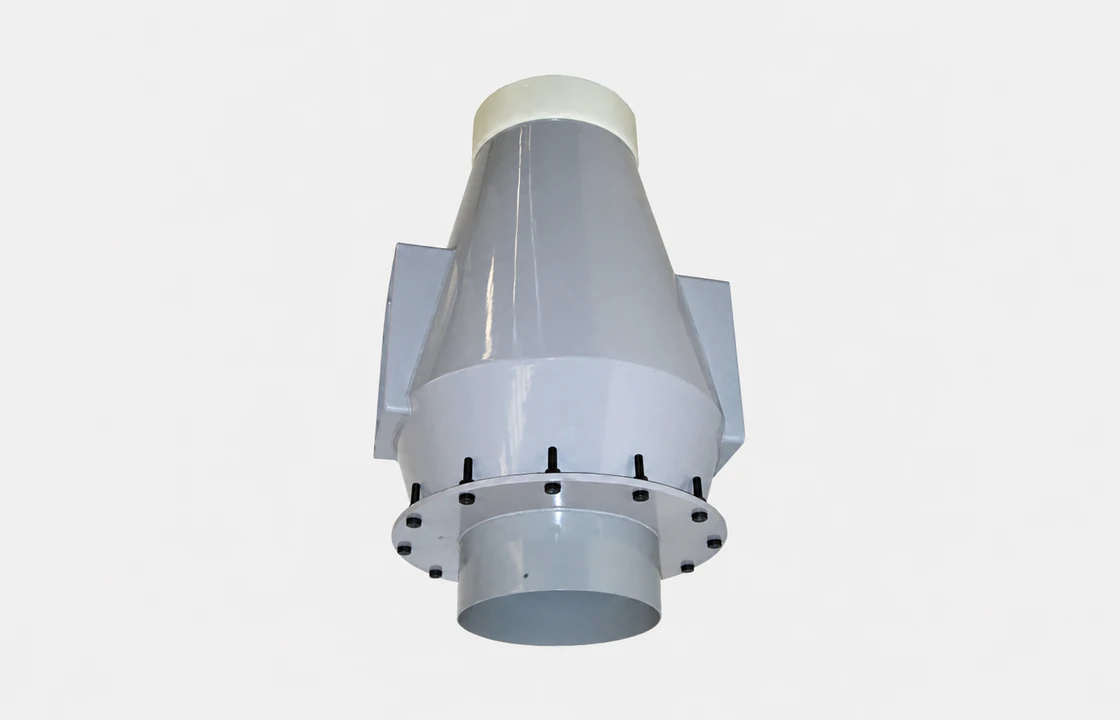

Product specification
| Item | Product information |
|---|---|
| Fan design | Direct-drive, bifurcated centrifugal fan |
| Housing | Thermoformed and fabricated uPVC |
| Impeller | Dynamically balanced, backward-curved polypropylene |
| Motor | Single-phase motor in an alloy frame |
| Speed setting | Integral preset adjustment |
| Design duty | 250 litres per second for the Student package |
Installation considerations
The stack uses stainless steel guy wires for support. The fan’s internal drainage arrangement avoids a separate cowl in the described Student package. Confirm the installation and duty for your site with FumeCare.
Downloads
These original technical drawings retain their Calibre identification. Ask FumeCare to confirm the current specification for your project.
